Isolite Euro Grey

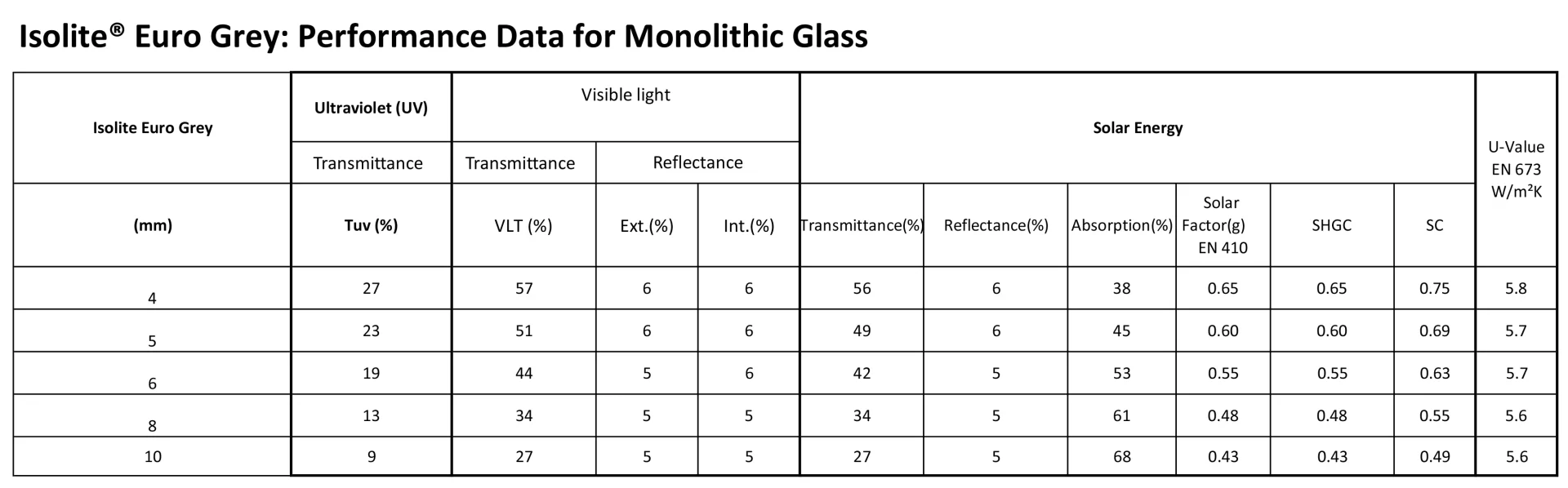

Isolite Euro Grey : Performance data for Monolithic Glass
| Glass Configuration | UV | Visible Light | Solar Energy | ||||||||
| Isolite Euro Grey | % | % | % | % | % | ||||||
(MM) | Transmittance | Transmittance | Reflectance Outdoors | Reflectance Indoors | Transmittance | Reflectance | Absorption | Solar Factor EN410 | SHGC | SC | U Value W/M2K |
| 4 | 30 | 55 | 6 | 6 | 55 | 6 | 39 | 0.66 | 0.67 | 0.77 | 5.8 |
| 5 | 25 | 48 | 6 | 6 | 48 | 5 | 47 | 0.62 | 0.62 | 0.72 | 5.7 |
| 6 | 20 | 42 | 5 | 5 | 42 | 5 | 53 | 0.58 | 0.58 | 0.67 | 5.7 |
| 8 | 15 | 33 | 5 | 5 | 33 | 5 | 62 | 0.52 | 0.52 | 0.60 | 5.6 |
| 10 | 10 | 25 | 5 | 5 | 25 | 5 | 70 | 0.47 | 0.48 | 0.55 | 5.6 |
- Performance data is based on representative samples of factory production. Actual values may vary slightly due to variations in the production process.
- Tabulated data is based on NRFC methodology using the LBL Windows 5.2 Software and where noted European methodology using WinDat WIS version 3.0.1 software.
- SF = Solar Factor (EN410) also known as g-value.

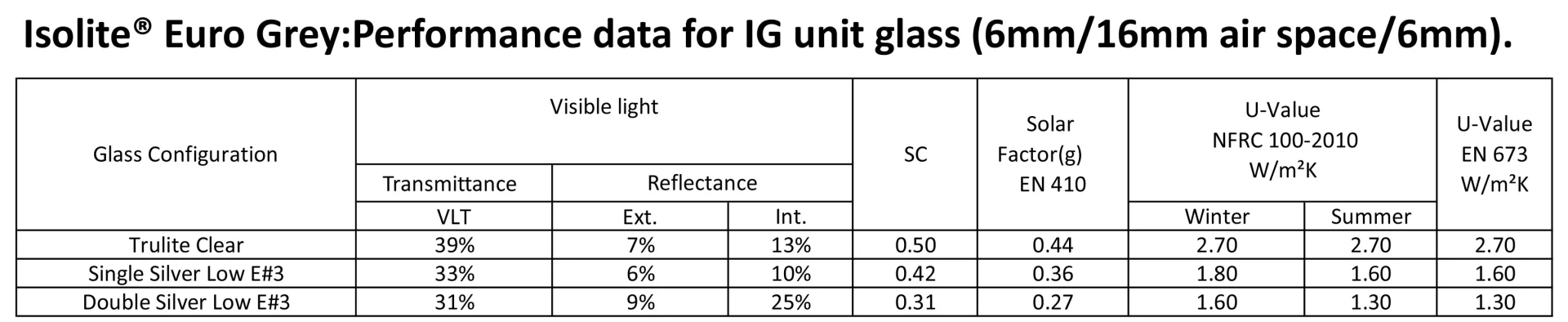

Isolite Euro Grey: Performance data for IG Unit Glass (6mm/16mm air space/6mm)
| Visible light Transmission VLT | Visible light Reflectance | SC | Solar Factor(g) EN 410 | U-Value Imperial | U-Value EN 673 W/m²*K | |||
| Ext. | Int. | Winter | Summer | |||||
| Trulite Clear | 40% | 7% | 13% | 0.51 | 0.44 | 2.80 | 2.70 | 2.70 |
| SG 500 -Hard coat Low E#3 | 38% | 8% | 15% | 0.44 | 0.38 | 1.90 | 1.80 | 1.80 |
| Single Silver Low- E#3 | 36% | 8% | 12% | 0.41 | 0.35 | 1.80 | 1.60 | 1.60 |
