Vistalite Clear

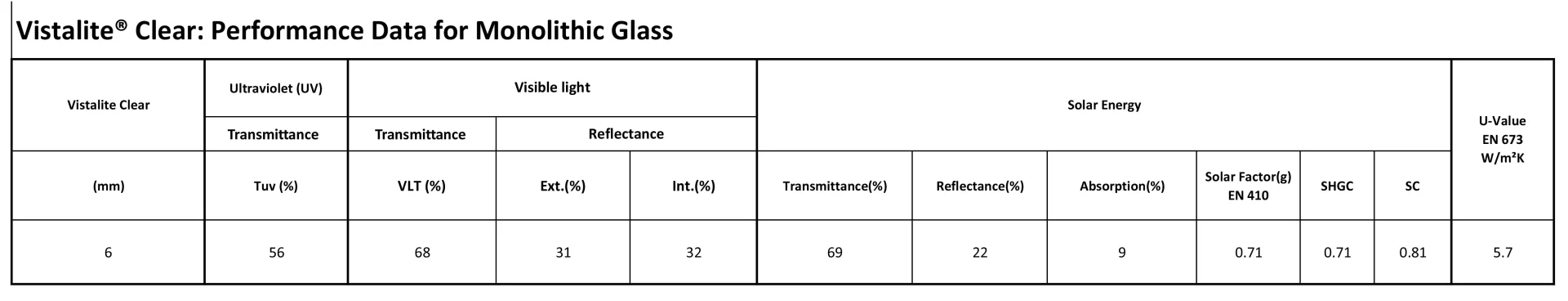

Vistalite Clear: Performance Data For Monolithic Glass
| Glass Configuration | UV | Visible Light | Solar Energy | ||||||||
| Vistalite Clear | % | % | % | % | % | ||||||
| (MM) | Transmittance | Transmittance | Reflectance Outdoors | Reflectance Indoors | Transmittance | Reflectance | Absorption | Solar Factor EN410 | SHGC | SC | U Value W/M2K |
| 6 | 55 | 68 | 29 | 30 | 65 | 18 | 17 | 0.69 | 0.70 | 0.80 | 5.7 |
– Performance data is based on representative samples of factory production. Actual values may vary slightly due to variations in the production process.
– Tabulated data is based on NRFC methodology using the LBL Windows 5.2 Software and where noted European methodology using WinDat WIS version 3.0.1 software.
– SF = Solar Factor (EN410) also known as g-value.
Vistalite Clear : Performance Data for IG Unit Glass (6mm/16mm air space/6mm)
| Visible light Transmission VLT | Visible light Reflectance | SC | Solar Factor(g)EN 410 | U-Value Imperial | U-Value EN 673 W/m²*K | |||
| Ext. | Int. | Winter | Summer | |||||
| Trulite Clear | 62% | 33% | 32% | 0.69 | 0.6 | 2.80 | 2.70 | 2.70 |
| SG 500 -Hard coat Low E#3 | 58% | 34% | 31% | 0.62 | 0.56 | 1.90 | 1.80 | 1.80 |
| Single Silver Low E#3 | 56% | 33% | 29% | 0.58 | 0.5 | 1.80 | 1.60 | 1.60 |
