Solarlite Sky Blue

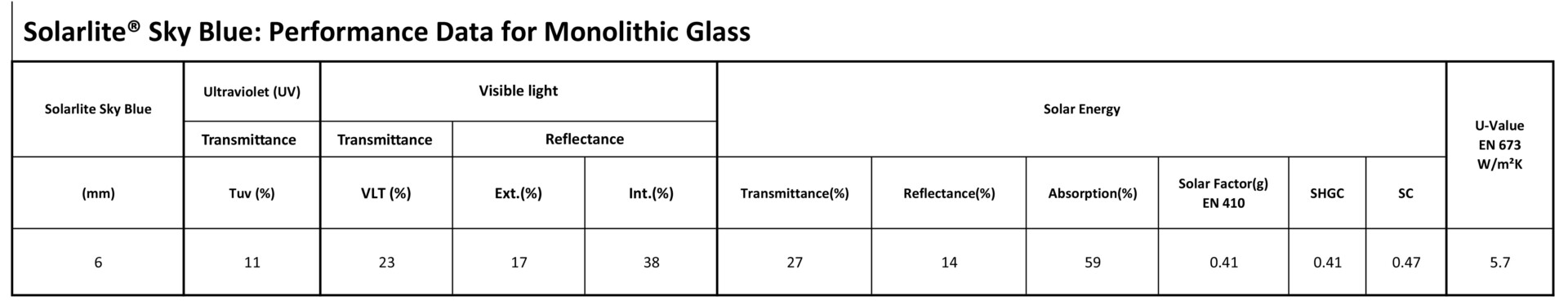

Solarlite Sky Blue Glass: Performance Data For Monolithic Glass
| Glass Configuration | UV | Visible Light | Solar Energy | ||||||||
| Solarlite Sky Blue | % | % | % | % | % | ||||||
(MM) | Transmittance | Transmittance | Reflectance Outdoors | Reflectance Indoors | Transmittance | Reflectance | Absorption | Solar Factor EN410 | SHGC | SC | U Value W/M2K |
| 6 | 8 | 23 | 16 | 35 | 26 | 17 | 57 | 0.36 | 0.37 | 0.42 | 5.7 |
– Performance data is based on representative samples of factory production. Actual values may vary slightly due to variations in the production process.
– Tabulated data is based on NRFC methodology using the LBL windows 5.2 software and where noted European methodology using WinDat WIS version 3.0.1 software.
– SF = Solar Factor (EN41 0) also known as g-value

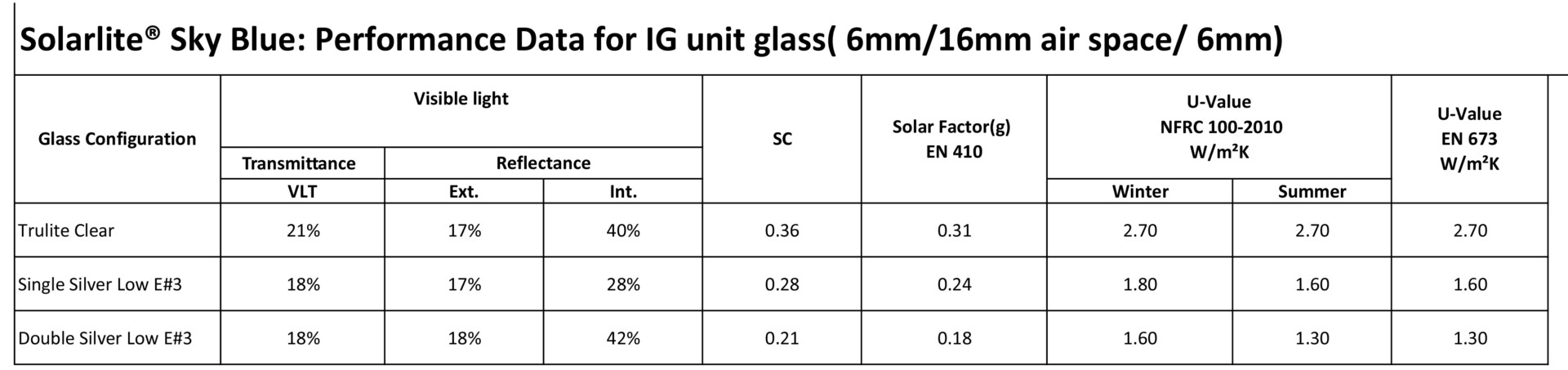

Solarlite Sky Blue : Performance Data for IG Unit Glass(6mm/16mm air space/6mm
| Visible light Transmission VLT | Visible light Reflectance | SC | Solar Factor(g)EN 410 | U-Value Imperial | U-Value EN 673 W/m²*K | |||
| Ext. | Int. | Winter | Summer | |||||
| Trulite Clear | 21% | 16% | 38% | 0.29 | 0.25 | 2.80 | 2.70 | 2.70 |
| SG 500 -Hard coat Low E#3 | 18% | 16% | 36% | 0.26 | 0.23 | 1.90 | 1.80 | 1.80 |
| Single Silver LowE#3 | 16% | 17% | 32% | 0.25 | 0.22 | 1.80 | 1.60 | 1.60 |
